Reverberation Chamber
Create a controlled, uniform RF field for emissions and immunity testing.

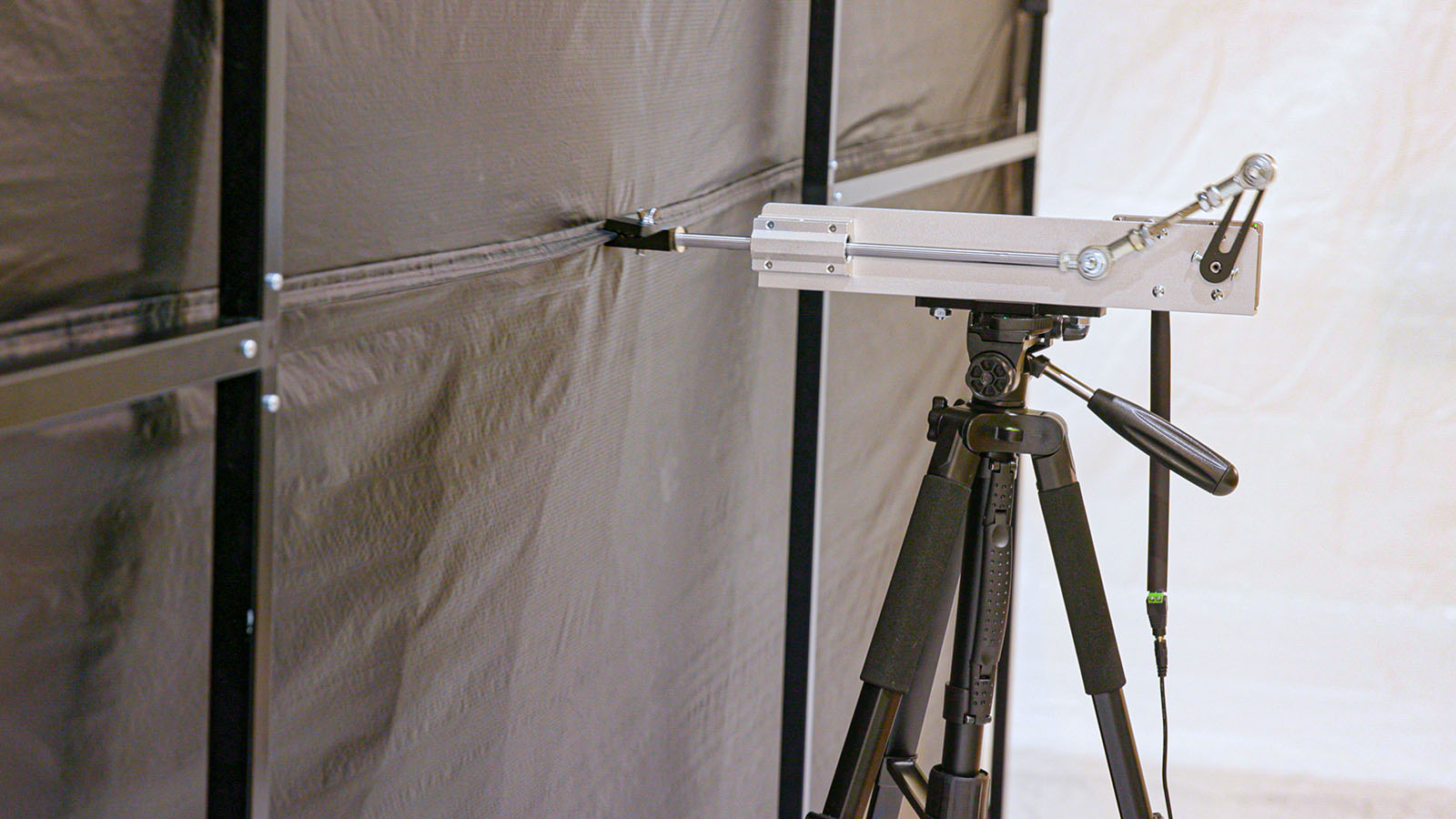

VTT’s 9000 Series Portable Reverberation Chamber delivers powerful, repeatable RF testing in a soft-sided, collapsible format—saving space without sacrificing performance. Made from highly conductive Shieldex® textiles and equipped with a rotating metallized stirrer, it generates a uniform, diffuse RF field to test emissions and immunity across all surfaces of the device under test (DUT). This vibrating intrinsic reverberation chamber (VIRC) supports pre-certification and stress testing in aerospace, automotive, and defense settings. It’s compatible with standard test software and fully customizable to your device size—all at a fraction of the cost of traditional hardwall chambers.
Product fast facts
- VTT’s Reverberation chamber can be custom fabricated to any size requirement or configuration depending on component needs for power panels, filter boxes, and much more.
- Material 3-layer Shieldex® Nora Dell RS CR, Shieldex® Berlin RS and Shieldex® Zell RS
- Shielding effectiveness average 95 dB from 0.03 GHz to 18 GHz
- Clean room compatible to A300 (ISO6). Used by NASA.
Learn more.
